LN10X46Q1
已量产
车规级,36V,6A,同步降压转换器
样品和评估板申请
产品详情
正常工作电压Min (V) | 3.5 |
正常工作电压Max (V) | 36 |
输出电压范围(V) | 1~Vin可调 |
输出电流 (A) | Up to 6 |
同步整流(集成上管和下管) | 是 |
工作静态电流 (uA) | 16 |
关断静态电流 (uA) | 0.5 |
轻载模式 | PFM/FPWM可选 |
开关频率 (KHz) | 200 to 2500 |
EMI性能 | 随机展频; Switching点上升斜率可调; Flipchip封装工艺; 对称输入布局; |
其它功能 | Enable pin; Power Good Indicator; Internal Compensation; Internal Soft Start; Synchronization to external clock: |
完整保护 | Accurate Peak and Valley Current Clamp; Output short-circuit protection with hiccup mode; Accurate Vin UVLO protection; Over-temperature shuntdown and recovery; |

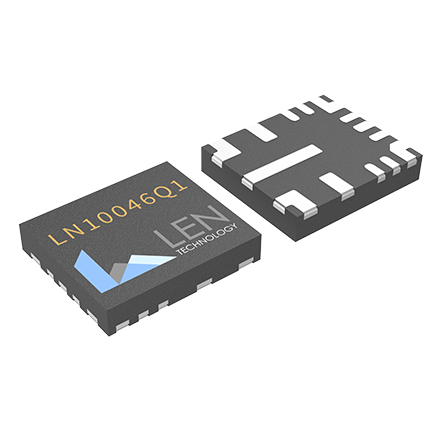

封装 | LQFN4035W-14 with wettable flank |
产品等级 | AEC-Q100 Grade1 |
工作结温 | -40 to 150 |
功能安全类别 | Functional Safety Capable |
